Product Details
Technical Features:
Workpiece length can be infinitely extended to meet the polishing needs of extra-long workpieces.
The machine is easy to operate and learn.
Convenient clamping, suitable for mass production.
Suitable for medium and large-scale enterprise production.
Main Parameters:
| External Dimensions: | 2800mm*1400mm*1580mm |
| Total Power: | 3kw |
| Power Supply: | 380V |
| Total Weight: | 1800kg |
| Spindle Speed: | 6000r-9000r/min |
| Cutting Depth: | 0-1mm |
| Cutting Speed: | 0-2000mm/min |
| Cutting Method: | Work Feed: |
| Cutting Angle: | 0°-60° |
| Processing Accuracy: | ±0-05mm |
| Dust Collector Port Size: | 100mm |
Belongs to category:

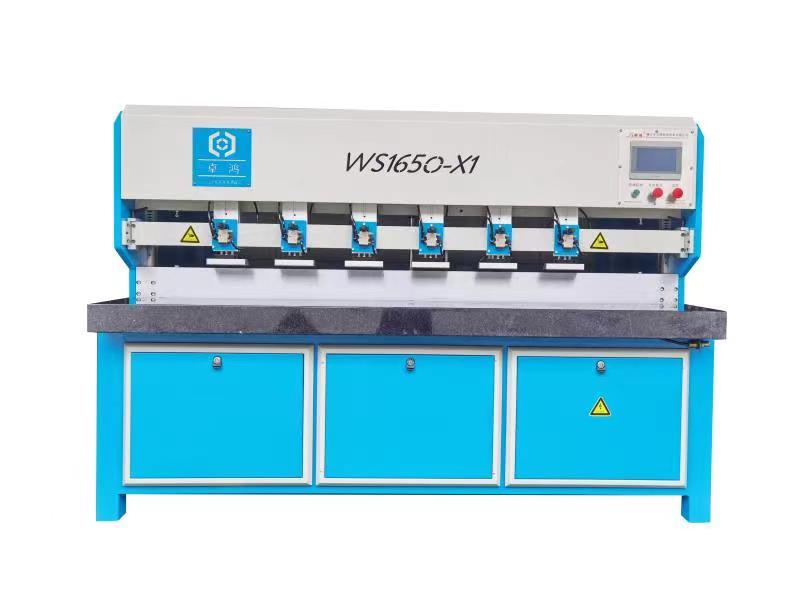

ZH-WS1650X1
Summary Description
Technical Features: 1. Infinitely extendable workpiece length to accommodate extra-long workpieces for polishing. 2. Simple and easy-to-learn machine operation. 3. Convenient clamping suitable for mass production. 4. Suitable for medium and large-scale enterprise production. Main Parameters: External Dimensions: 2800MM*1400MM*1580MM Power Supply Requirements: AC380V+N Spindle Speed: 6000R/Min-9000R/Min Polishing Speed: 0-1500MM/Min Polishing Angle: 0 to 60 degrees Polishing Depth: 0-1mm Polishing Method: Spindle Rotation Processing Size: L1300MM×T100MM Dust Collection Port Size: 100MM Compressed Air: 0.5Mpa Total Power: 2KW Total Weight: 1800kg
