Technical Features:

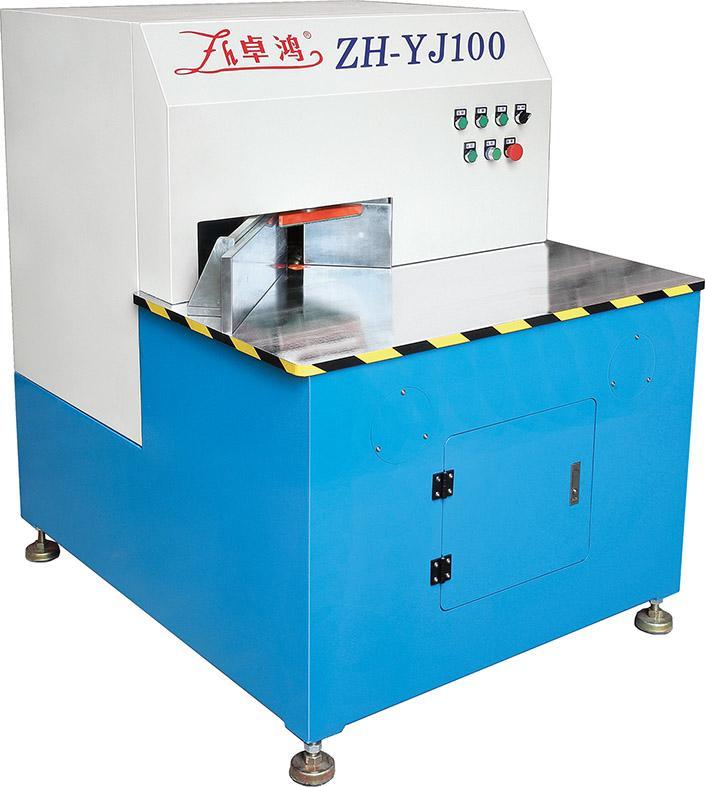

Automatic bevel polishing machine, with adjustable main shaft motor angle on a fixed platform, automatic feed component, equipment frame and auxiliary automatic conveyor

The upper surface of the fixed positioning plate is perpendicular to the upper surface of the movable spindle device. The auxiliary regulator is equipped with a slide rail, and the slider is slidably connected to the slide rail.

Convenient for adjusting the angle and its size. The main shaft of the equipment is also equipped with a polishing blade disc, which is directly assembled on the main shaft. This automatic bevel polishing machine can perform chamfering and bevel polishing of acrylic plates, with strong stability and good polishing effect.

Main Technical Parameters:

External Dimensions:	*1010mm1220mm1630mm*
Worktable Height:	800mm
Chamfer Size:	0-10mm adjustable
Cutting Thickness:	Maximum 100mm
Tools:	6 planer knives
Overall Power:	≥1.5kw
Power Requirements:	380V
Spindle Speed:	6000-12000r/min
Polishing Speed:	0-2000mm/min (adjustable)
Feeding Method:	Blade disc feed
Compressed Air:	≥0.45mpa
Overall Weight:	500kg

Belongs to category:

Acrylic diamond polishing machine

ZH-YJ100

Summary Description

Technical Features: 1. Automatic bevel polishing machine, fixed platform with movable spindle motor angle, automatic feed component, equipment frame and auxiliary automatic conveyor. 2. The upper surface of the fixed positioning plate and the upper surface of the movable spindle device are mutually perpendicular, and the auxiliary regulator is equipped with a slide rail, and the slider is slidably connected with the slide rail. 3. Convenient for adjusting the angle and size of the angle. The main shaft of the equipment is also equipped with a polishing blade disc, which is directly assembled on the main shaft. This automatic bevel polishing machine can perform chamfering and bevel polishing of acrylic plates, with strong stability and good polishing effect. Main Technical Parameters: External dimensions: 1010mm*1220mm*1630mm Workbench height: 80mm Chamfering size: 0-10mm adjustable Cutting thickness: Maximum 100mm Tool: 6 planer blades Total power: ≥1.5kw Power supply requirements: 380V/50HZ Spindle speed: 6000-12000R/Min Polishing speed: 0-2000mm/Min (adjustable) Feeding method: Blade disc feed Compressed air: ≥0.45Mpa Total weight: 500kg
