Technical Features:

Utilizes the latest international "bus control" automated control technology; stable performance
Utilizes digital operation; simple and easy to learn; convenient operation; easy to teach; convenient tool setting; parameters can be input. Eliminates the complex manual tool setting of conventional equipment
Uses imported rotary platform; high rotational accuracy
Saves labor; simple operation; can be operated by one person; improves production efficiency; large disc diameter; single polishing thickness is 250mm
Completes four-sided polishing and chamfering at once; eliminates manual plate changing; saves time and effort; high processing accuracy; eliminates errors caused by secondary clamping during plate changing, resulting in higher accuracy
Electrical components use imported brands; quality assurance; considerate after-sales service

Main Technical Parameters:

External Dimensions:	4 910mm3510mm1900mm
Processing Dimensions:	*Two-sided polishing: 1300mm650mm Four-sided polishing: 1300mm650mm*
Power Requirements:	380V
Spindle Speed:	6000-12000r/min
Polishing Speed:	0-1800mm/min
Polishing Angle:	0°
Compressed Air:	≥5.5mpa
Total Power:	≥20kw
Polishing Depth:	0-2mm
Polishing Method:	Workpiece feed
Dust Collector Size:	79-100mm
Total Weight:	3500kg

Belongs to category:

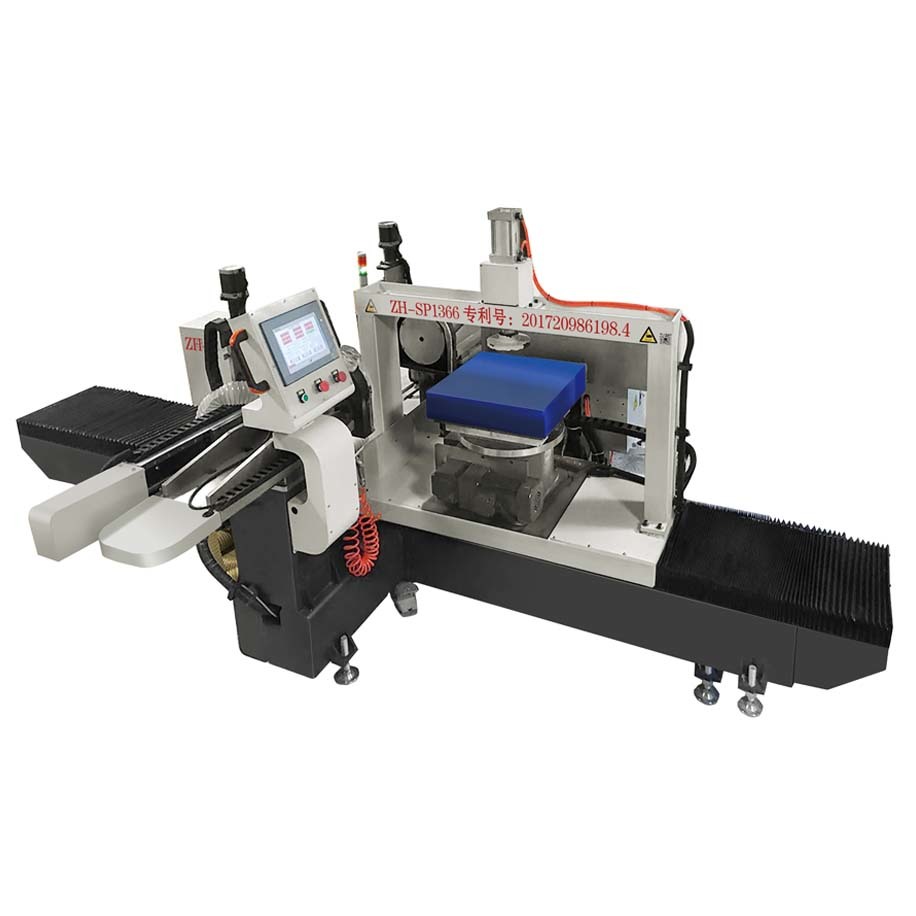

Fully automatic four-sided polishing and chamfering machine

ZH-SP1366

Summary Description

Technical Features: Adopts the latest international "bus control" automated control technology; stable performance; uses digital operation, simple and easy to learn, convenient operation, easy to teach, convenient tool setting, simply input parameters. Eliminates the complex manual tool setting of conventional equipment. Adopts imported rotary platform, high rotation precision, saves labor, simple operation, one person can operate, improves production efficiency. Large diameter of the tool disc, single polishing thickness is 250mm, completes four-side polishing and chamfering at one time, saving manual plate changing, saving time and effort, high processing precision, eliminates the error caused by secondary clamping during plate changing, making the precision higher. Electrical components adopt imported brands, quality assurance, and intimate after-sales service. Main Technical Parameters: External Dimensions: 4910mm*3510mm*1900mm; Processing Dimensions: Two-side polishing: 1300mm*650mm; Four-side polishing: 1300mm*650mm; Power Supply Requirements: 380V; Spindle Speed: 6000-12000r/min; Polishing Speed: 0-1800mm/min; Polishing Angle: 0°; Compressed Air: ≥5.5mpa; Total Power: ≥20kw; Polishing Depth: 0-2mm; Polishing Method: Workpiece feeding; Dust Collection Port Size: 79-100mm; Total Weight: 3500kg
